PHLOW HUB
DOCK HOSE MANIFOLD
HARDWARE FEATURES

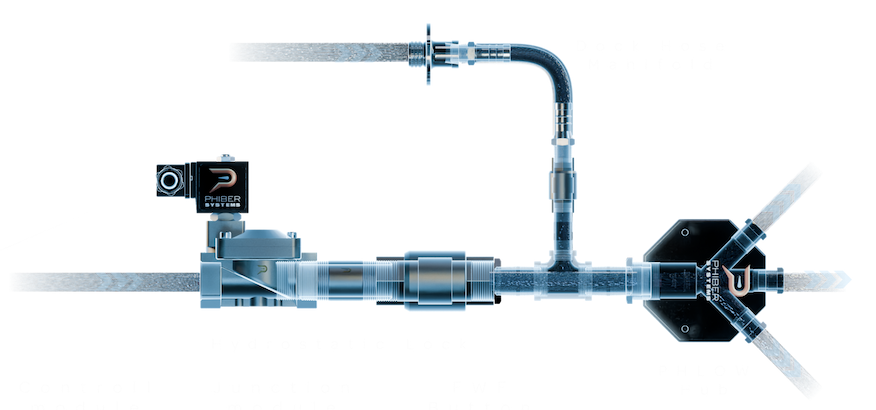

The OVERBOARD FWF Manifold is comprised of a properly-sized Hydrostatic Lock and the appropriate FWF “distribution” network installed downstream:

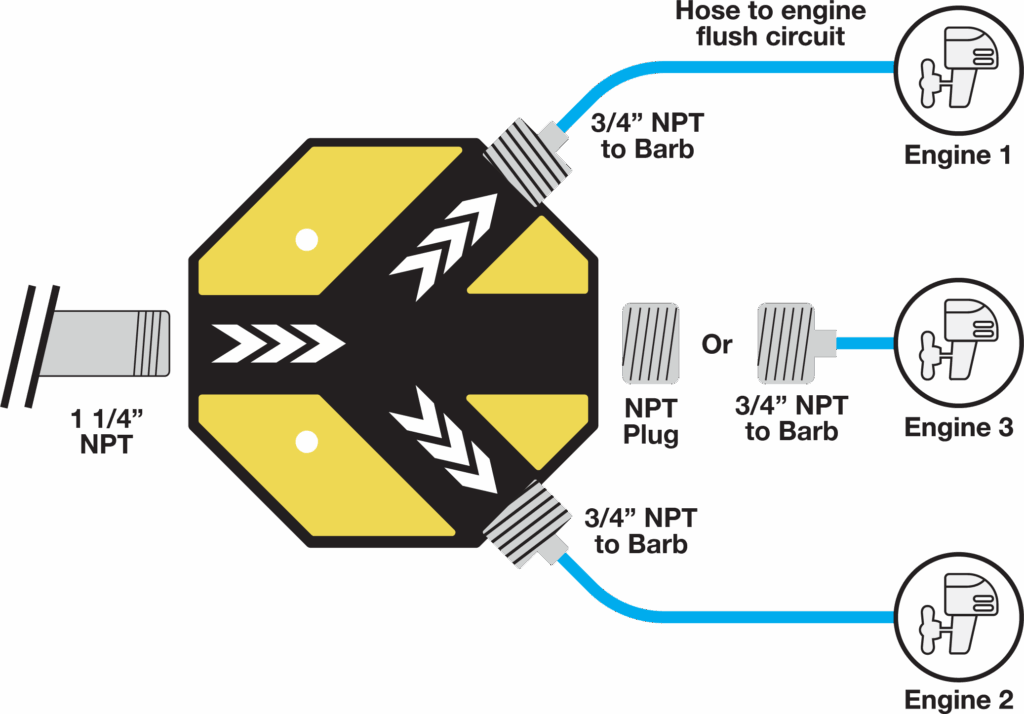

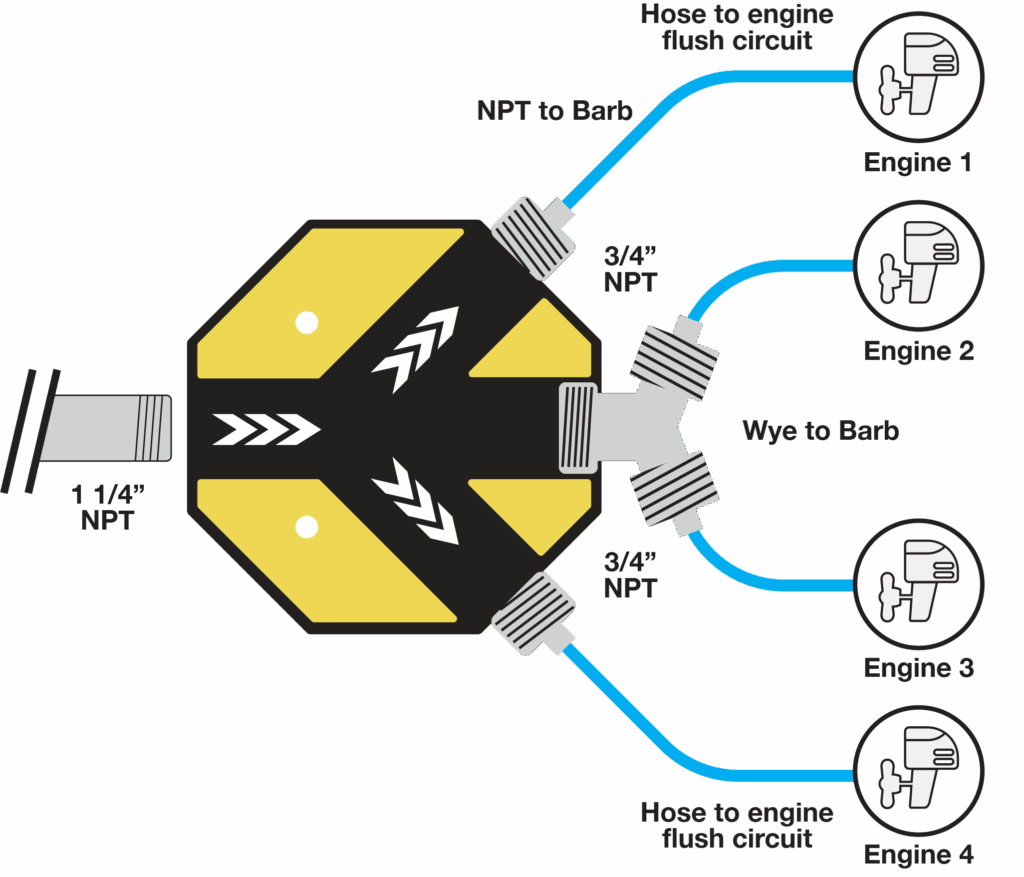

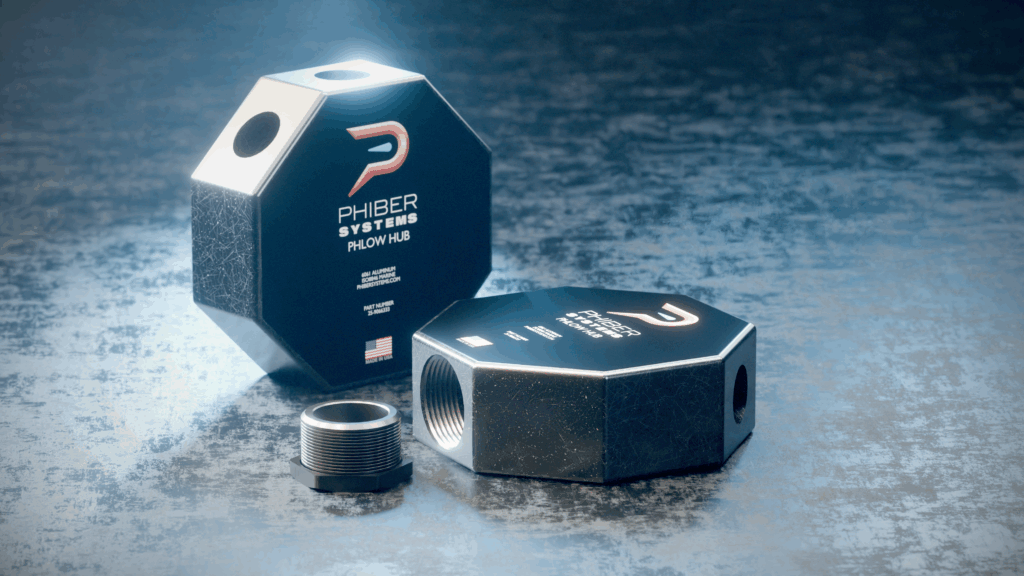

- PHLOW Hub
- Dock Hose Manifold
- Custom Plumbing Configuration
FUNCTIONAL OVERVIEW

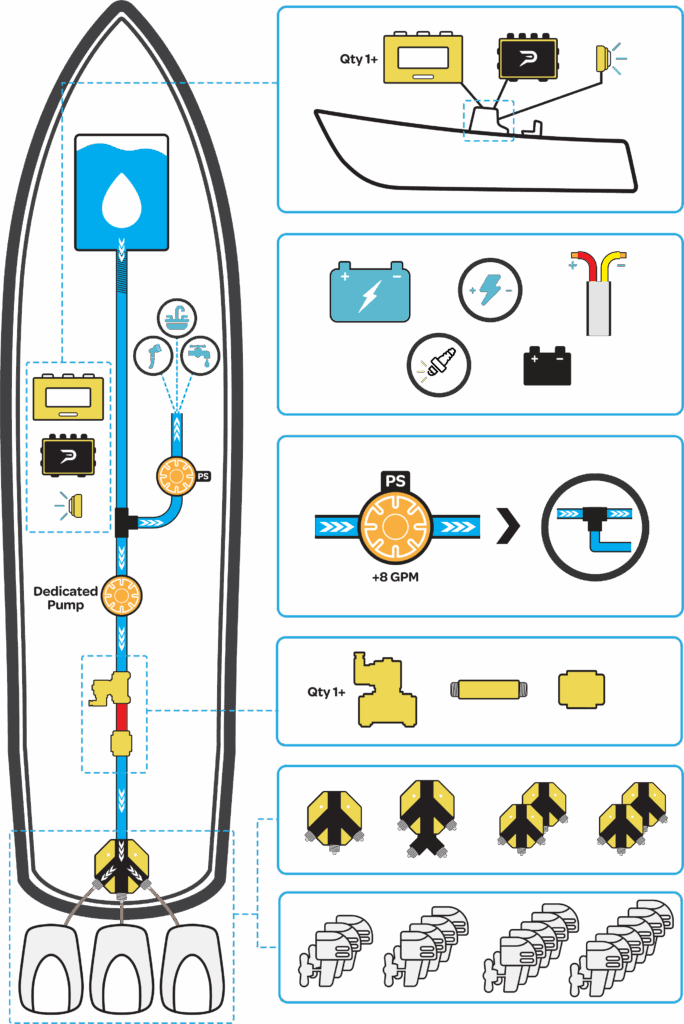

The PHIBER Overboard FWF Manifold serves “dry” or “simple” raw water networks in outboard engines, small gyro stabilizers, anchor/chain washdown systems, and more. Overboard Manifolds can be configured to serve single or multiple raw water networks simultaneously where flushing water is simply pushed into the seawater conduit(s) while INACTIVE. Flushing water is pushed through the raw water network and then discharged overboard or drained via gravity out of the system.
Optional components for the distribution of freshwater flow include the PHLOW Hub, Dock Hose Manifold Kit, and other customizations that can be performed during installation.

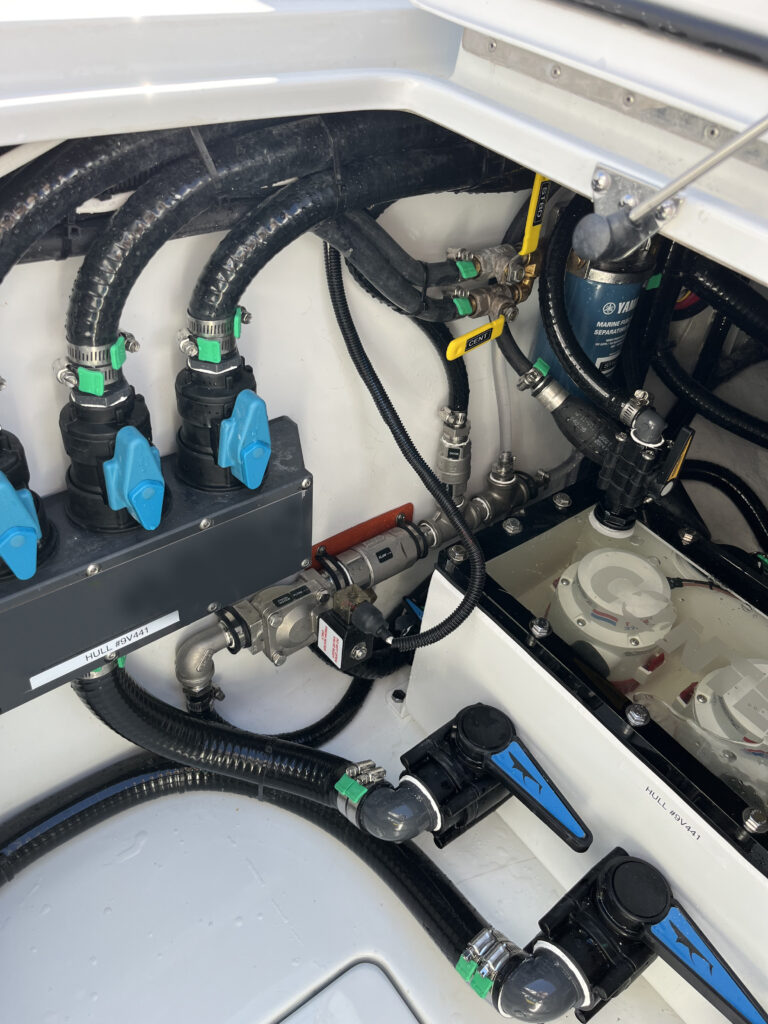

EXAMPLES OF INSTALLATION
