HARDWARE FEATURES
- Compact, lightweight design
- Ergonomic Menu/Navigation buttons
- MANUAL FLUSH button

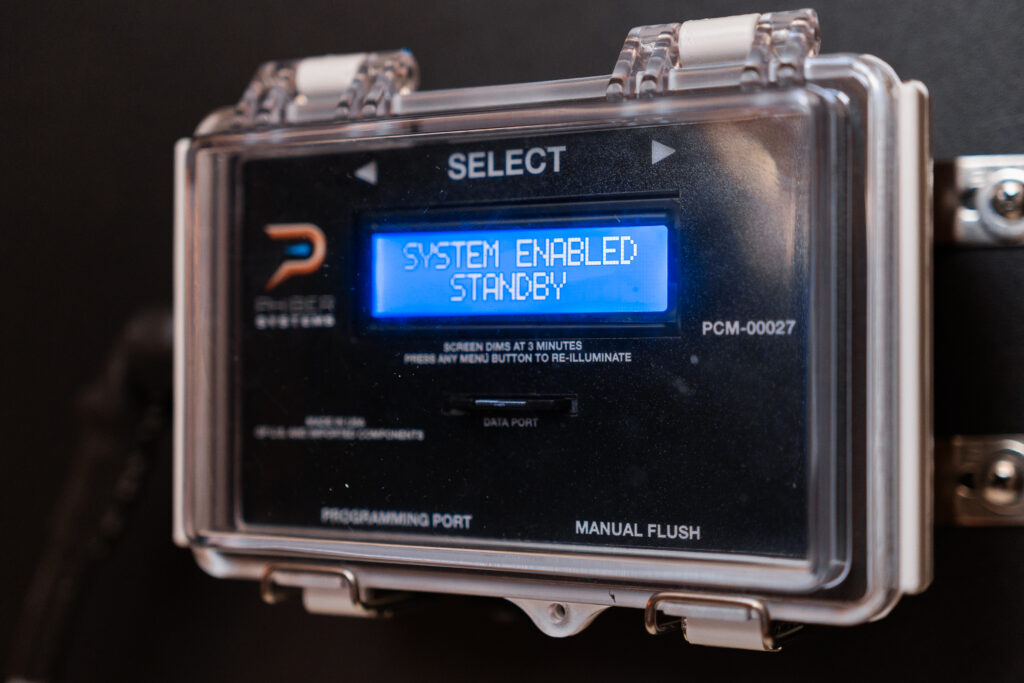

- Backlit LCD
- Environmentally sealed to IP67 standard
- SD card for storage and retrieval of historical/performance data
- “Plug & Play” harness with pre-terminated ends for Junction Module networking
- Intuitive Programming
- USB port for software upgrades
FUNCTIONAL OVERVIEW

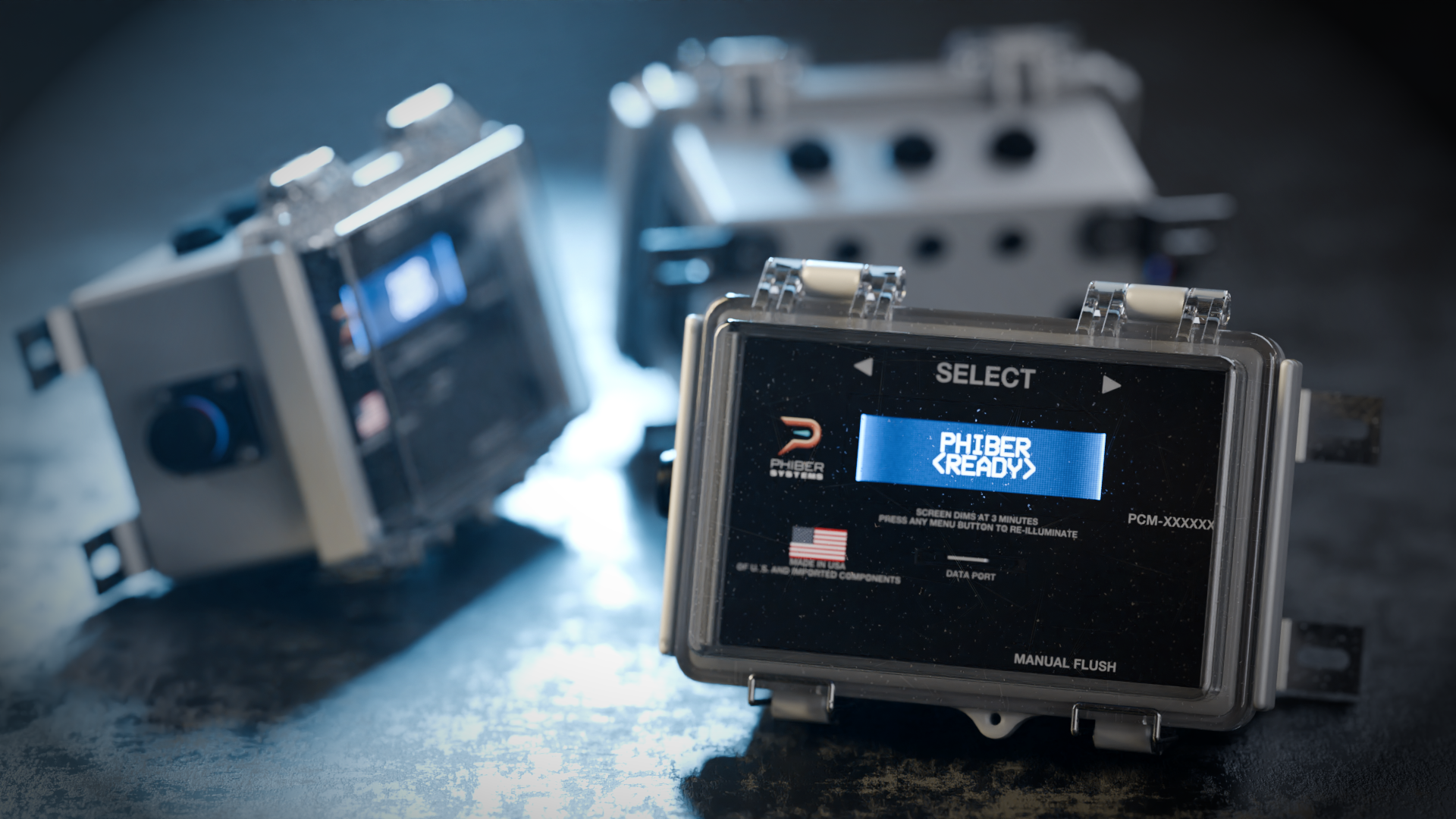

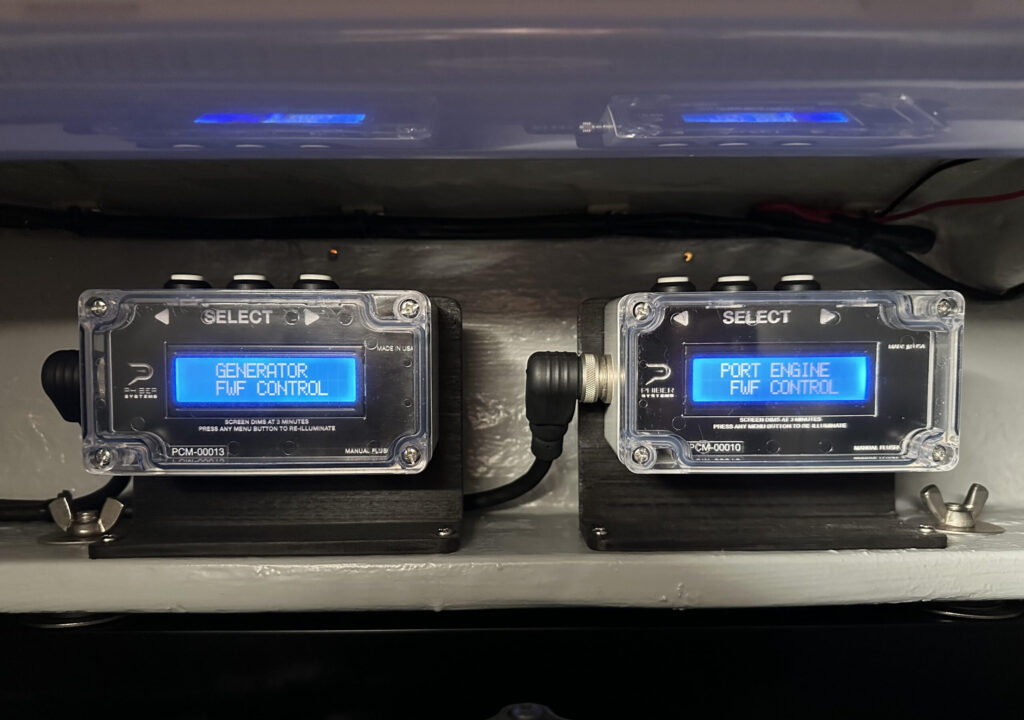

The PHIBER Control Module is designed specifically for serving marine applications and is universally compatible with ANY raw water network that can benefit from routine FWF maintenance. Flushing programs can tailored to the exact needs of a vessel’s raw water system to provide the optimal maintenance for a particular system.

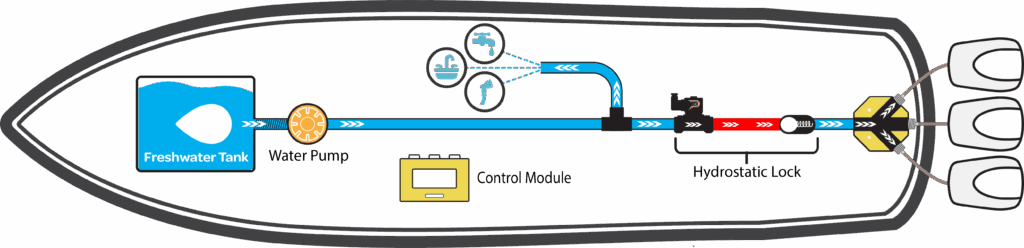

The Module offers features, functions and controls that no other competing product provides, including programming options and safety through AC & DC TRIGGER circuits that allow proper and safe FWF processes only after certain conditions are met within the system it serves. It operates in concert with a PHIBER FWF Manifold’s (Hydrostatic Lock) to execute a flush, executing with precision timing and control to achieve maximum benefit.
Its proprietary user interface was developed over 3 years of testing, and incorporates the experience and feedback from a wide range of marine professionals and recreational operators. It embodies both real world operating conditions and a wide range of application in its design.
Programming options for FWF functions include:
- ON DEMAND (Manual)
- List Item
- AUTOMATIC
- Man-Auto (manual engagement of the “Auto” programming
- Full-Auto (“Trigger” operation)
- Scheduled (Time intervals)
HISTORICAL FLUSH DATA PRESERVATION
The PHIBER Control Module stores and protects complete historical flushing data, offering the OEM and the boat owner a complete archive of flushing maintenance history which preserves the value of any vessel or system.
All flushing data is stored on an (included) SD card, which requires a proprietary decryption tool to unlock and download.
This data can be used to enhance resale value, prove critical maintenance is performed in accordance with manufacturers’ recommended service intervals, or even to comply with local environmental regulations when flushing is a mandatory process.
The 32GB capacity of the card allows up to 15 years of data to be stored.
“PLUG & PLAY” HARNESSING

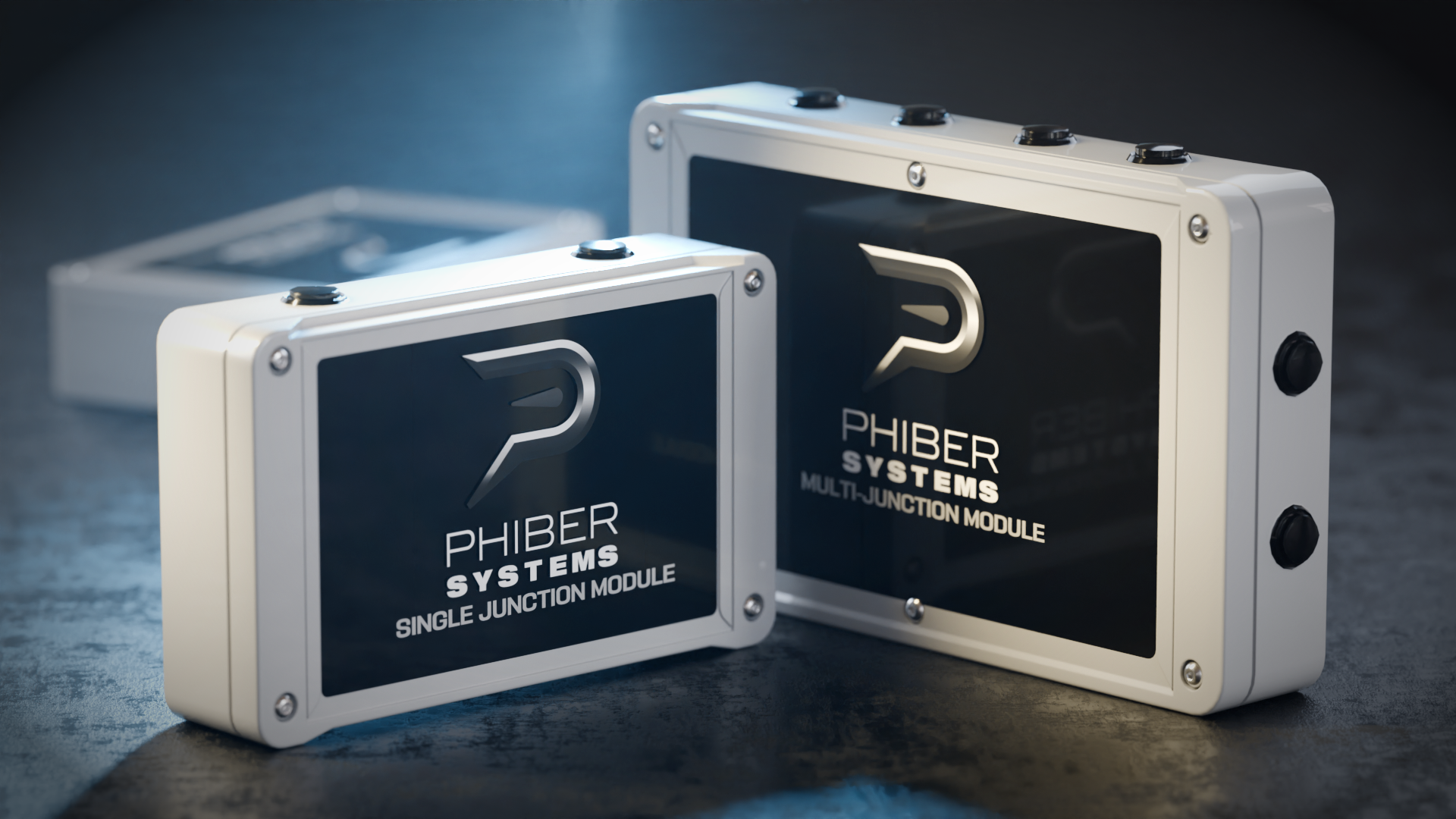

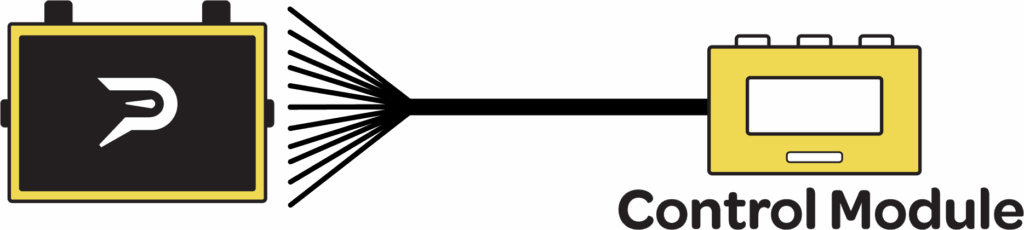

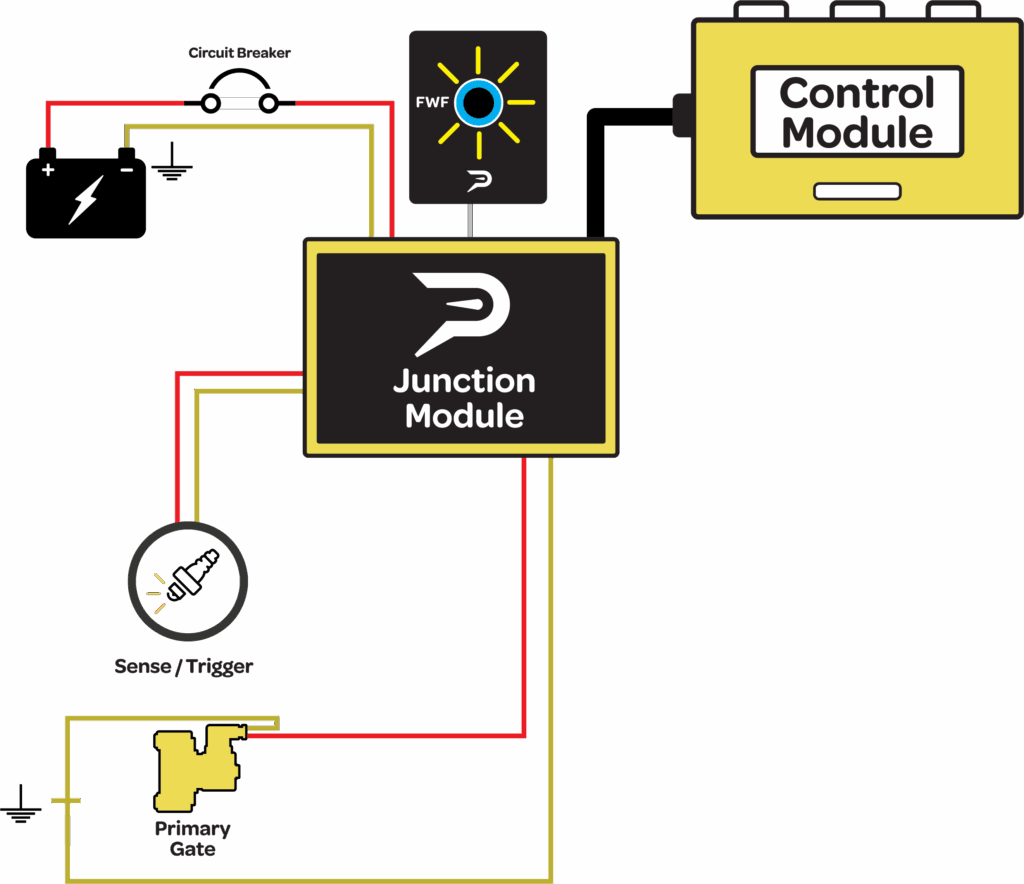

The Module has a “Plug & Play” wire harness that allows flexibility of location during installation, and it allows connection to a Junction Module for streamlined installation.
ADDITIONAL OEM OPTIONS ARE AVAILABLE FOR MANUFACTURERS
